The Most Popular Minimalist 3D Door Hinge In 2024

The Most Popular Minimalist 3D Door Hinge In 2024

Short Description:

Model No:3D door hinge

Material:  Zinc Alloy

Finish:     Matt Black / Satin Black Nickel / Matt White / Matt Gold


  • Delivery Time: 35 days after payment
  • Min.Order Quantity: 200 Piece/Pieces
  • Supply Ability: 50000 Piece/Pieces per Month
  • Payment Term: T/T, L/C, Credit Card
  • Standard: EN1906
  • Certificate: ISDO9001:2015
  • Salt Spray Test: 240 hours
  • Product Detail

    FAQ

    Product Tags

    Product Details Display

    door hinge hardware suppliers

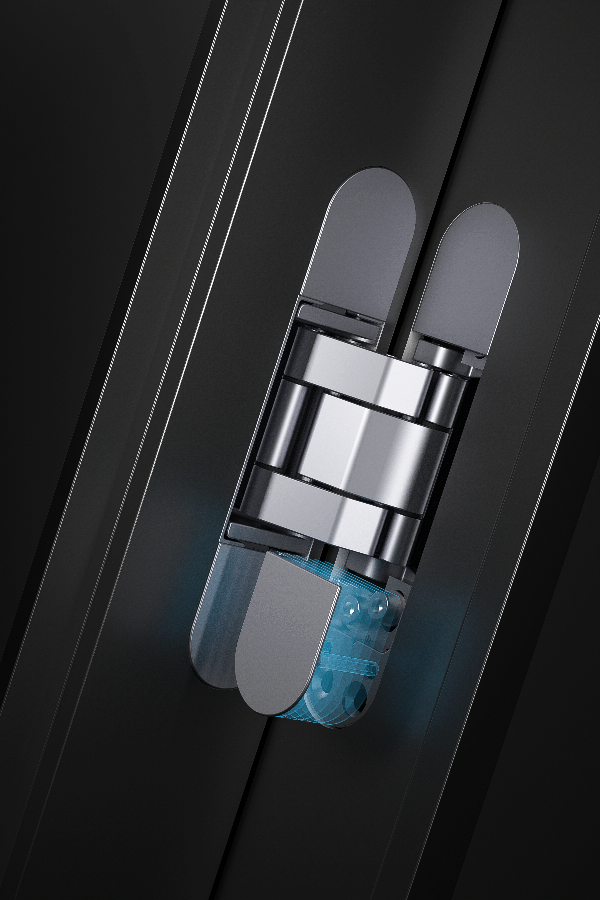

    Hidden screws

    The whole hinge has hidden screws, showing the beauty of simplicity.

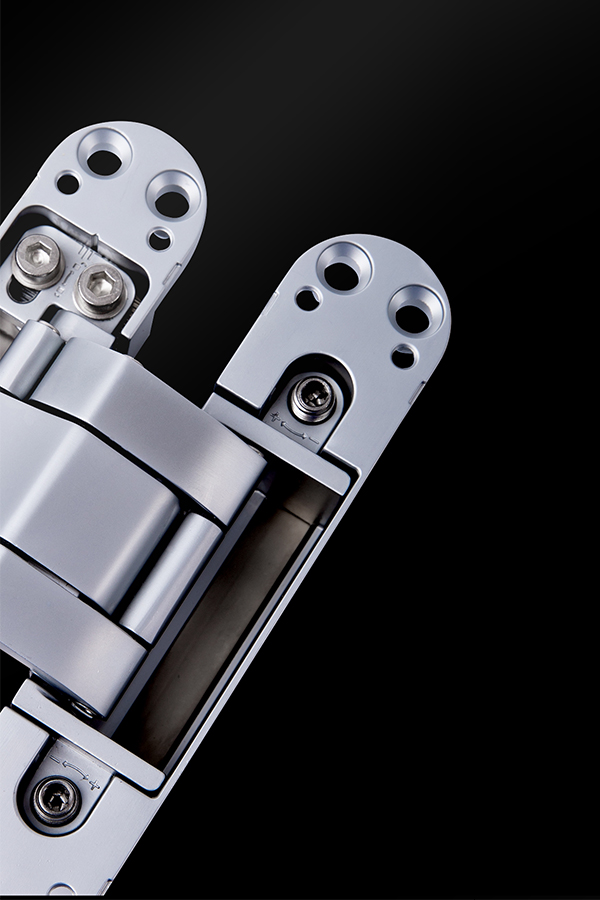

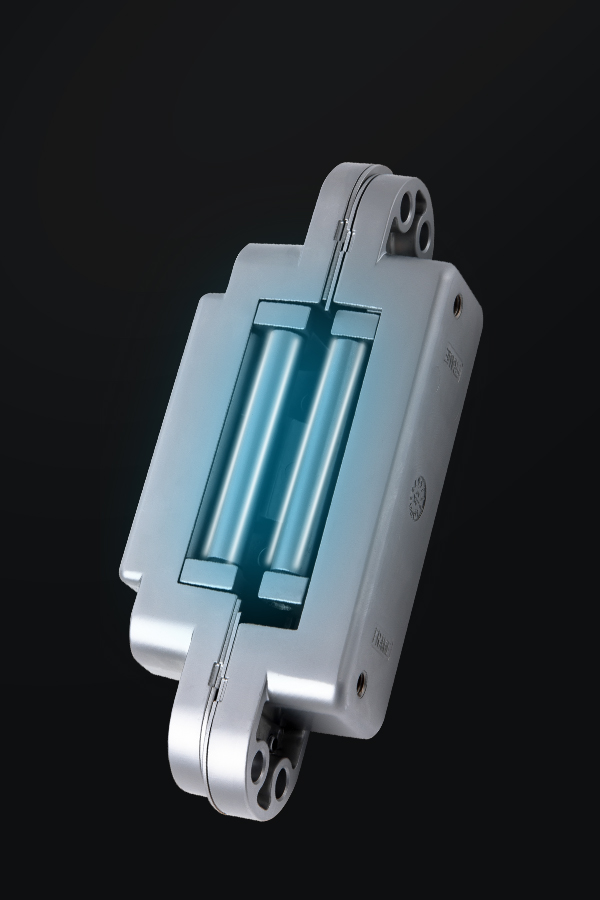

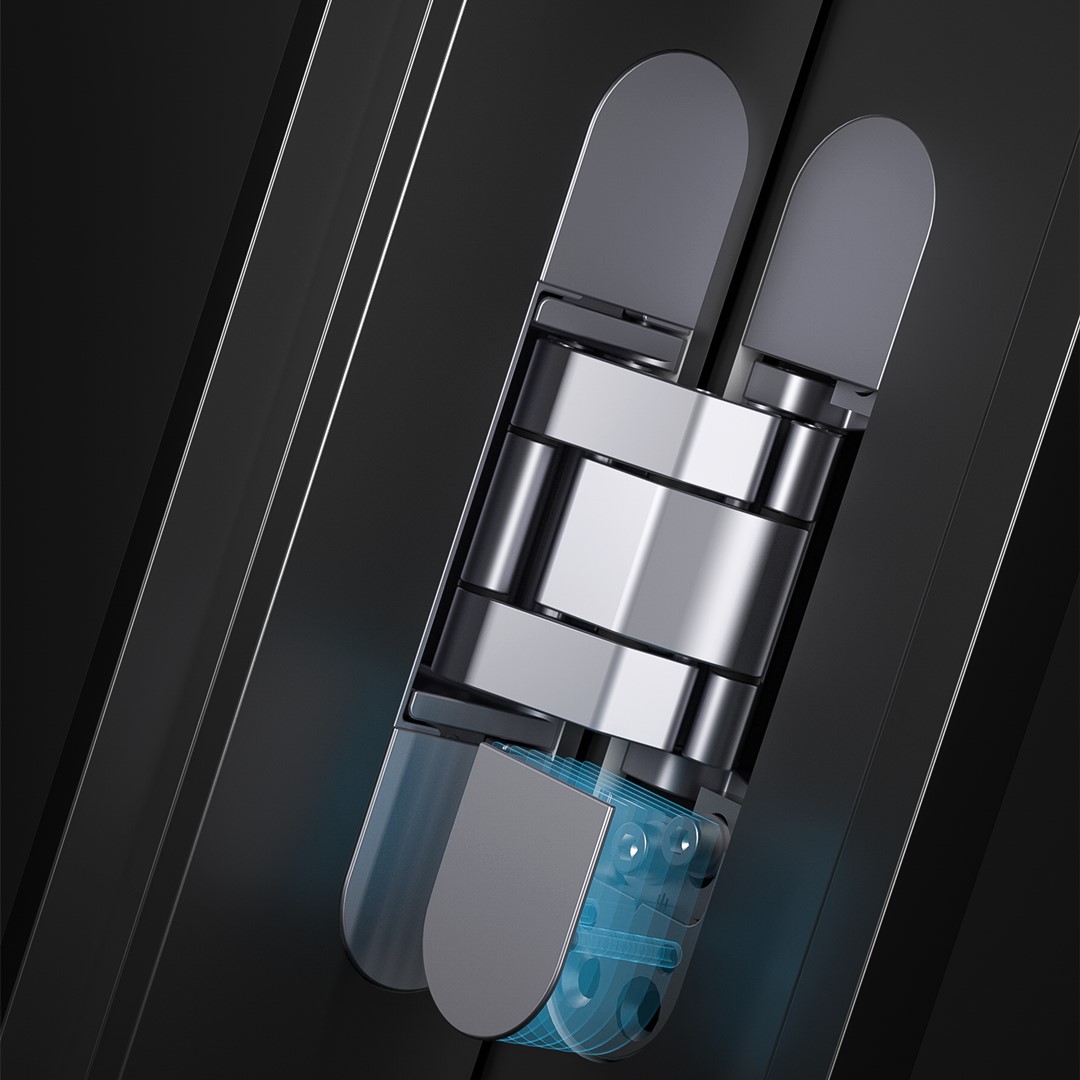

    Strong load-bearing door hinge

    Strong load-bearing capacity

    Four-axis support strengthens load-bearing.The three hinges have a load-bearing capacity of 90KG.

    minimalist door hinge in China

    Regardless of left or right

    The installation time of hinges is reduced by half regardless of left or right, and there is no backlog of stock, so there is no pressure on inventory.

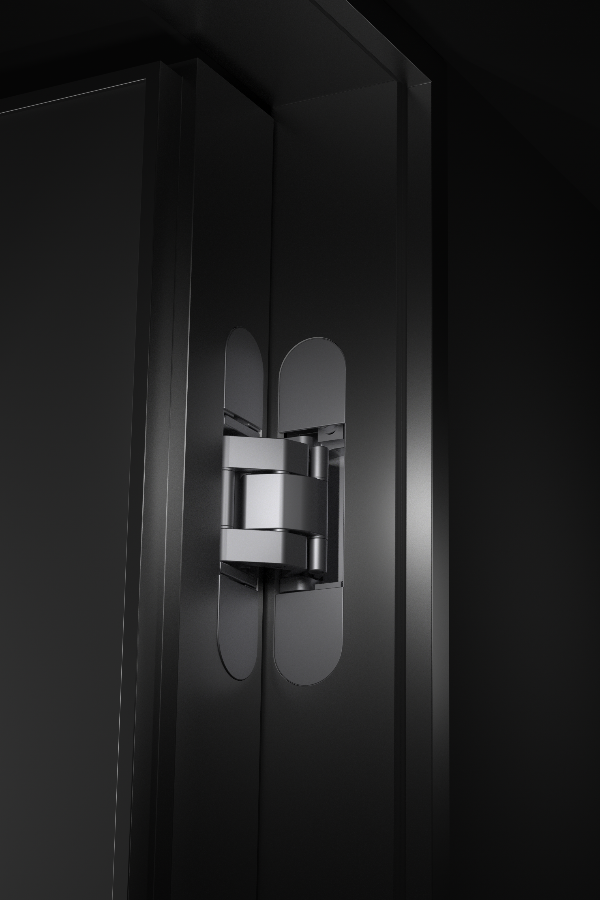

    Easy to install door hinge

    Easy installation

    Precise adjustment without disassembly or assembly of the door.More precise hinge adjustment, three-dimensional design allows easy adjustment without disassembly and assembly of the door

    Finish Display

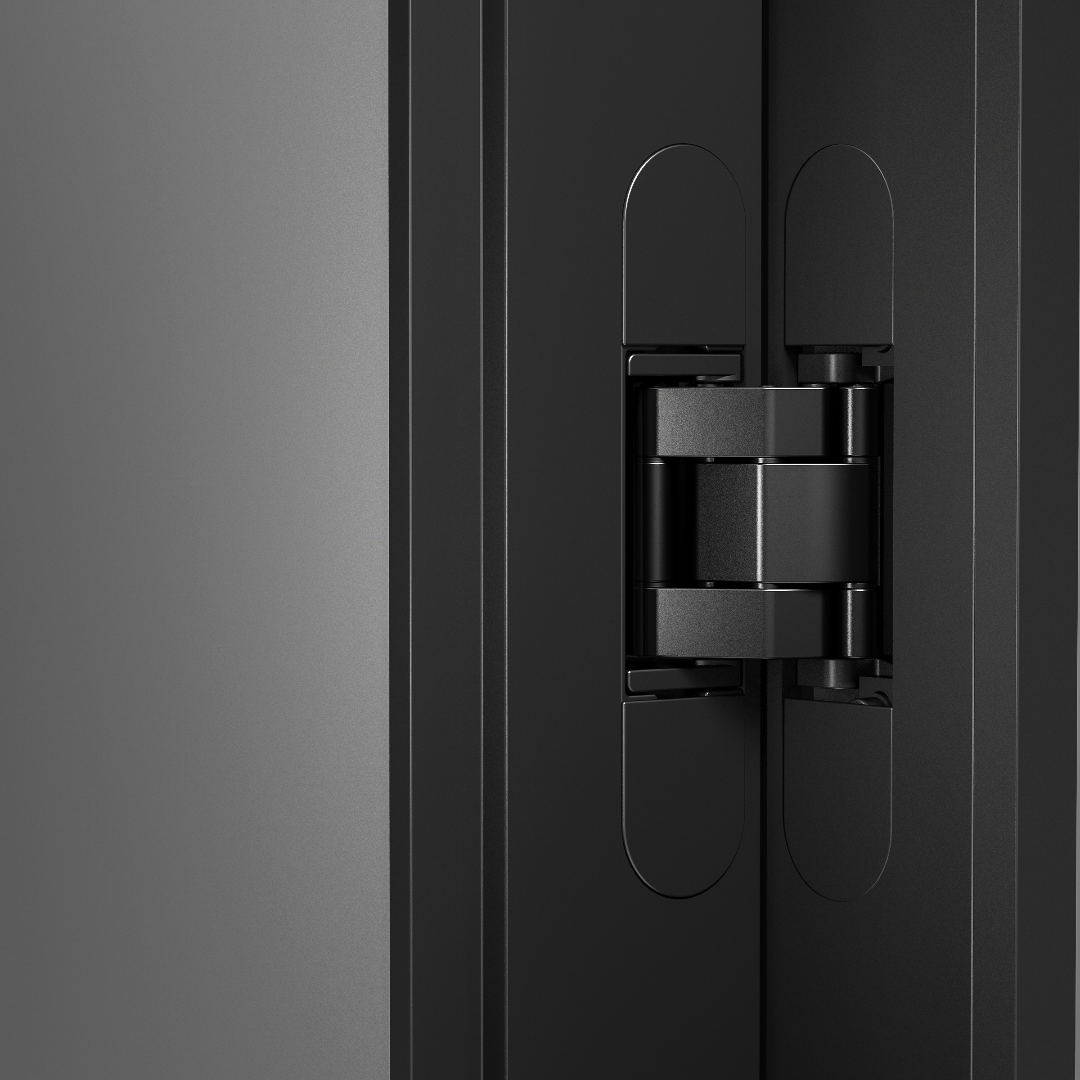

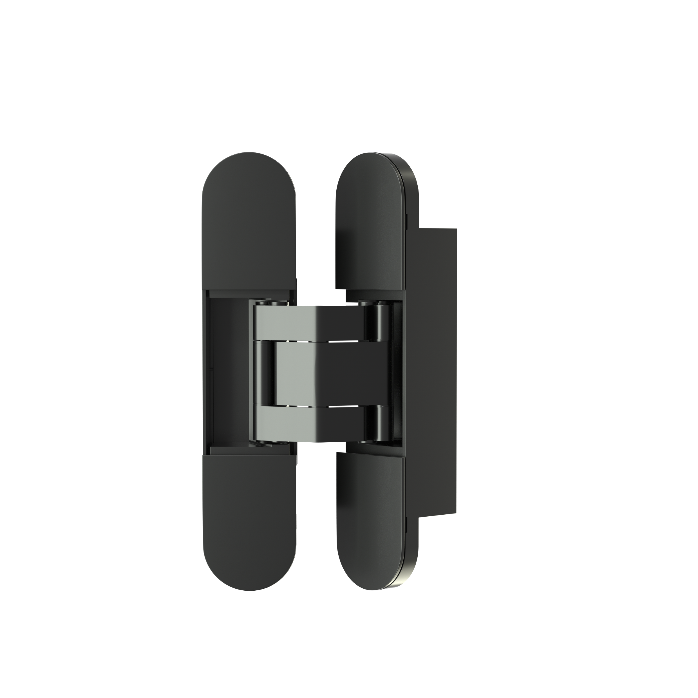

    matt black door hinge hardware at Yalis

    Matt Black

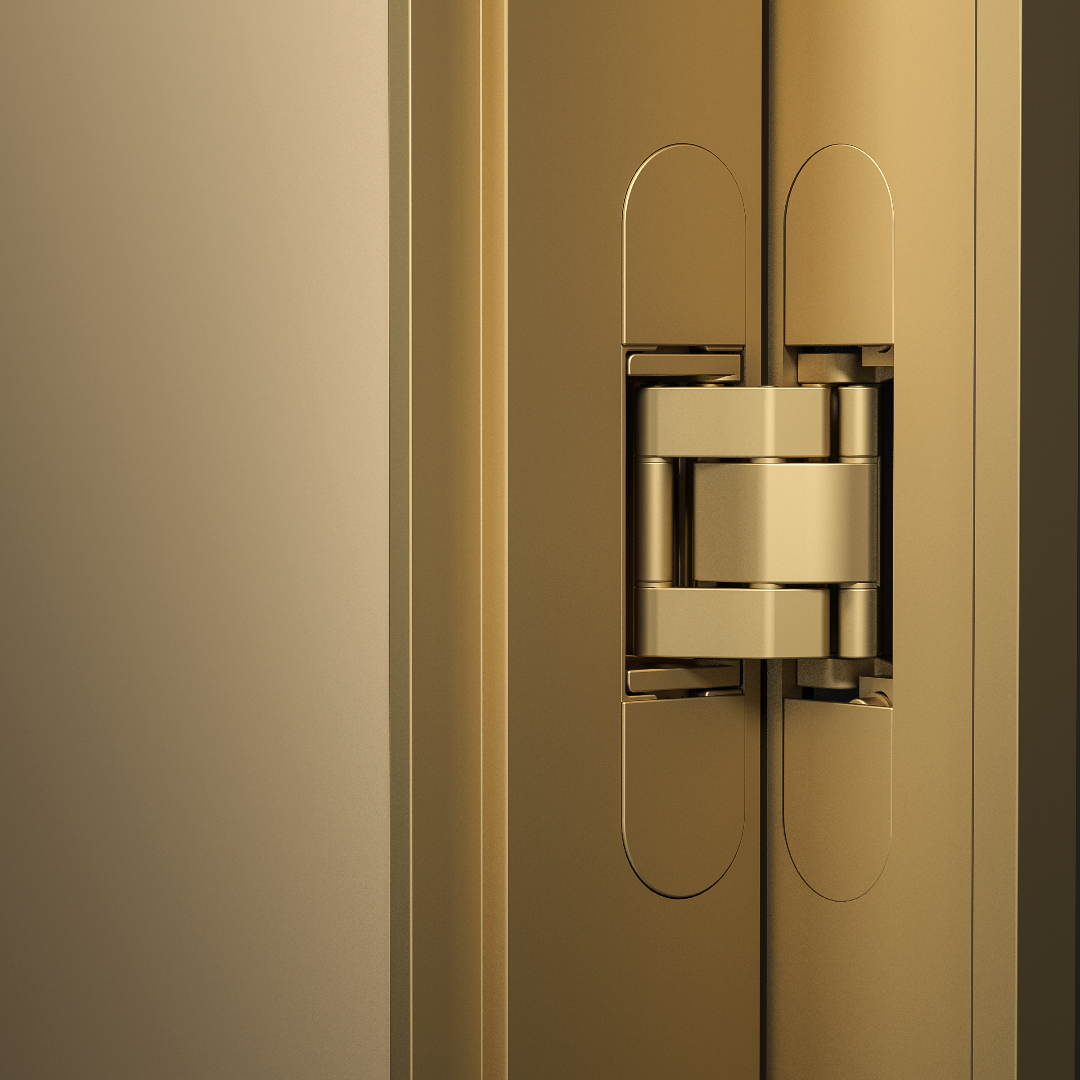

    matt gold door hinge hardware at Yalis

    Matt Gold

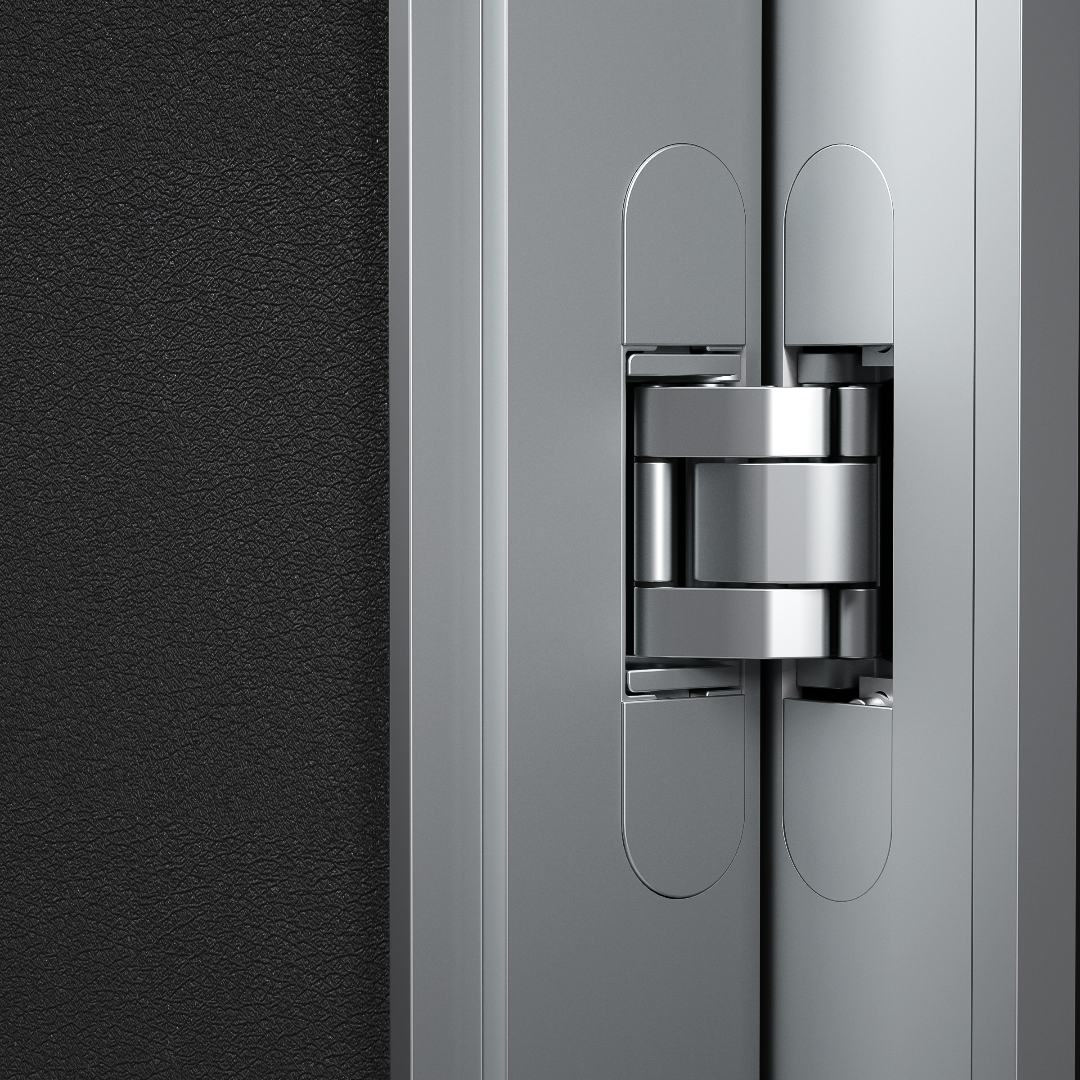

    satin black nickel door hinge hardware at Yalis

    Satin Black Nickel

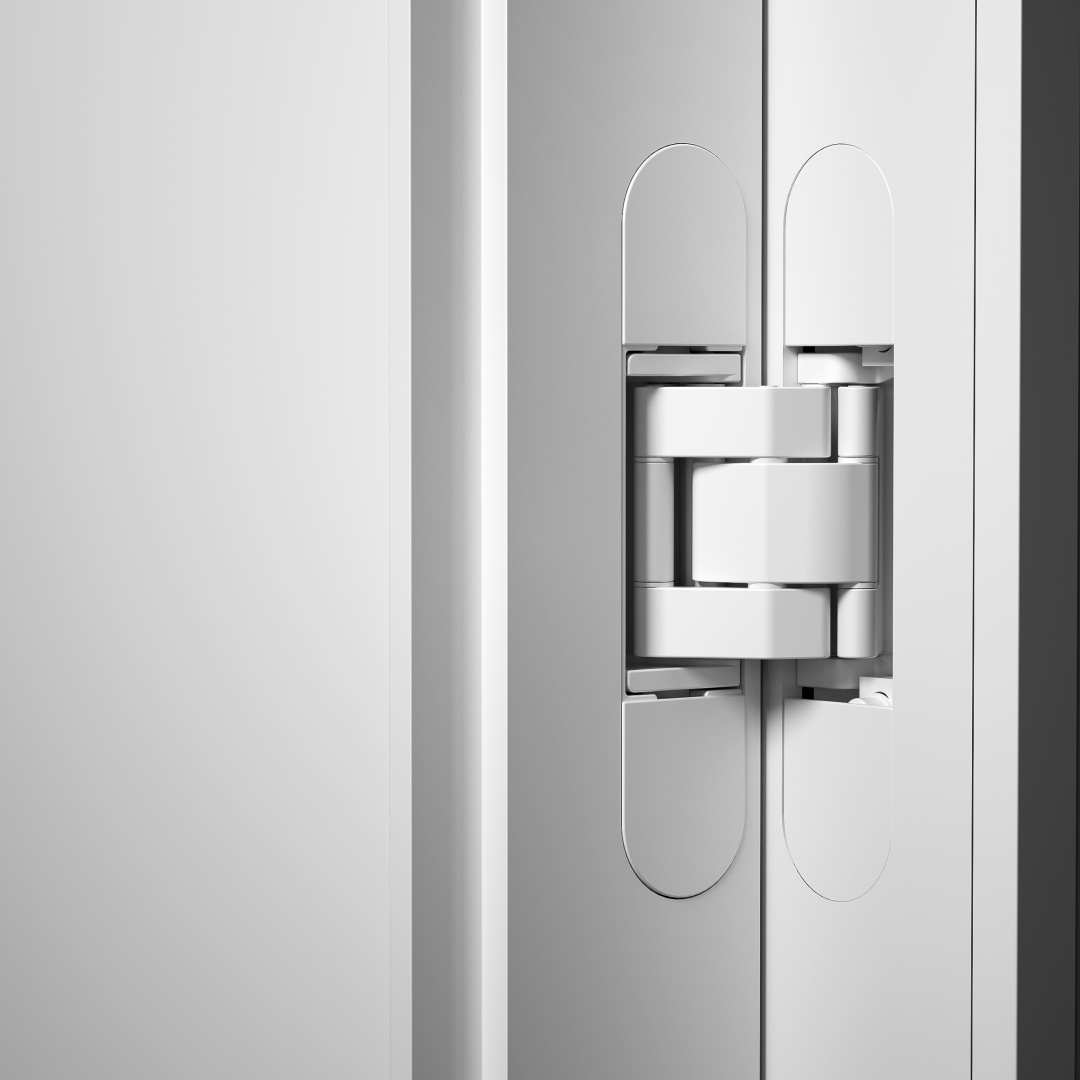

    matt white door hinge hardware at Yalis

    Matt White

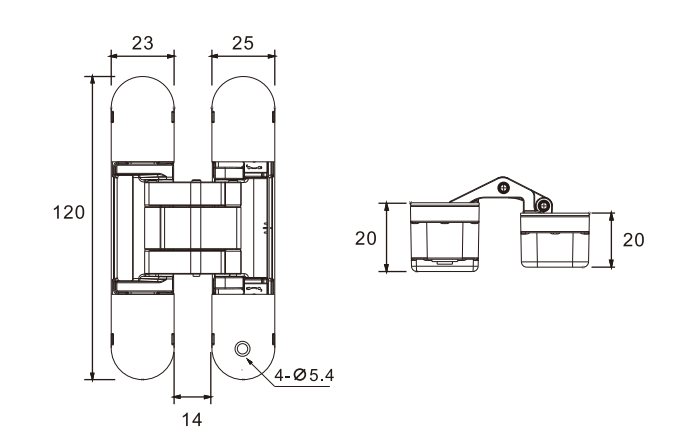

    Product Size Type

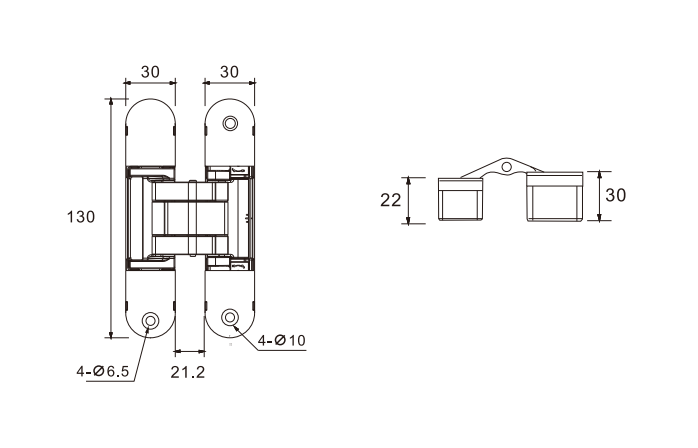

    Version One:YLS-032

    Material: Zinc alloy

    Application: Wooden door

    Opening degree: 180

    Max bearing: 60KGPAIR

    Door thickness: 45-50mm

    Width of door: less than 900mm

    Height of door: less than 2300mm

    Adjustment:

    Up & Down:±2mm

    Left & Right:±2mm

    Inward & Outward:1mm

    matt black door hinge at Yalis in China
    minimalist door hinge factory

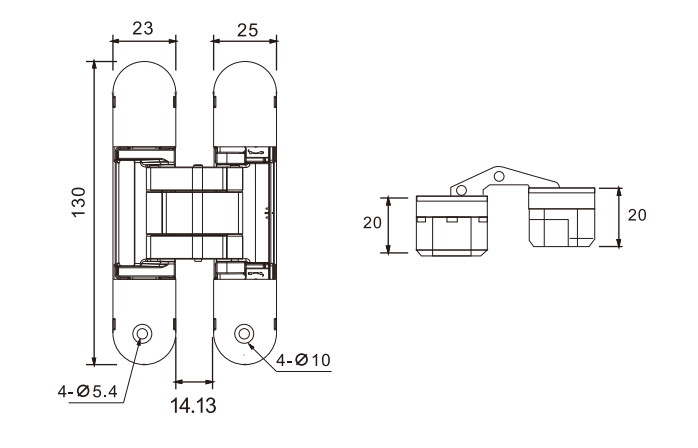

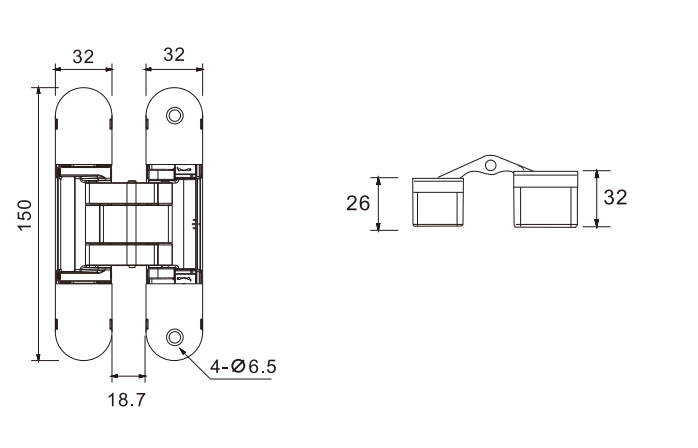

    Version Two:YLS-033

    Material: Zinc alloy

    Application: Wooden door

    Opening degree: 180

    Max bearing: 80KG/PAIR

    Door thickness: 45-50mm

    Width of door: less than 900mm

    Height of door: less than 2300mm

    Adjustment:

    Up & Down:t3mm

    Left & Right+2mm

    Inward & Outward: ±1mm

    matt black door hinge at Yalis in China
    door hinge hardware suppliers in China

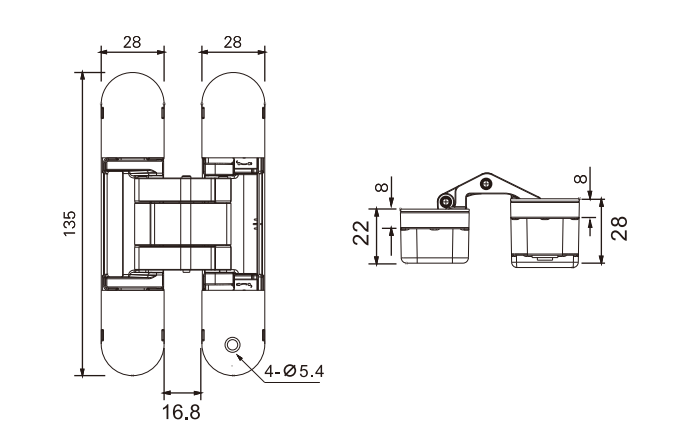

    Version Three:YLS-034

    Material: Zinc alloy

    Application: Wooden door

    Opening degree: 180

    Max bearing: 30KG PAIR ; 40KG/3 PIECES

    Door thickness: More than 29mm

    Width of door: less than 900mm

    Height of door: less than 2300mm

    Adjustment

    Up & Down:t3mm

    Left & Right:+2mm

    Inward & Outward: +1mm

    matt black door hinge at Yalis in China
    door hardware-door hinge at Yalis

    Version Four:YLS-035

    Material: Zinc alloy

    Application: Wooden door

    Opening degree: 180

    Max bearing: 50KG/PAIR

    Door thickness: 35-45mm

    Width of door: less than 900mm

    Height of door: less than 2100mm

    Adjustment:

    Up & Down:±2mm

    Left & Right:±2mm

    Inward & Outward: ±1mm

    matt black door hinge at Yalis in China
    Modern door hinge design

    Version Five:YLS-036

    Material: Zinc alloy

    Application: Wooden door

    Opening degree: 180

    Max bearing: 50KG/PAIR

    Door thickness: 38-55mm

    Width of door: less than 900mm

    Height of door: less than 2100mm

    Adjustment:

    Up & Down:±2mm

    Left & Right:±2mm

    Inward & Outward: ±1mm

    matt black door hinge at Yalis in China
    zinc alloy door stopper design

    Why Choose YALIS Products

    Stable Structure

    Our products has passed 200,000 times of cycle test which reaches EURO standard. Door locks uses tubular lever set structure which is the one of the most stable structure in the market.

    Customized Service

    Our door locks can be customized its size according to aluminum glass door frame ( aluminum profile )

    Cutting-edge Design

    The appearance of GUARD series glass door lock is the most cutting-edge design among the slim frame glass door lock, it adopts single handle design which is more minimalist and pretty.

    10 years’  Experience

    YALIS is a leading manufacturer specialized in door hardware for doors with over 10-years’ experience. And it has its own R&D team, production line and sales team. YALIS has passed ISO9001, SGS, TUV and EURO EN certifications.
